Specifications of DOSSY Axial Flow Cooling Fan

1.Fan Size:120mm ac axial fans
2.Ouraxial fan 220v with Stable balance work,good price
3.Our cooling fan have sleeve and ball bearing for choose
4. Our Axial fan have CE/CCC certifcation
5.OEM servic make your company logo in the middle of the axial fan

1. Axial flow fan motor: Shaded pole motor structure.impedance protect
2. Axial fan Frame:Casting aluminum alloy with black paint,anti-corrosion,anti-oxidization
3. Cooling Fan blades:Once moulded by pour mold,PBT+30%grass firbe+VO anti-burning preparation
4. Withstand voltage:Creep age current;0.5mA,witstand 1800V/Min
5. Isulating grade:B protecting grade:IP30
6. The setting bolt of fan: M4*8
7. Power supply:wires and switches connection
8. Blades rotating direction:counter-clockwise looking from the blades

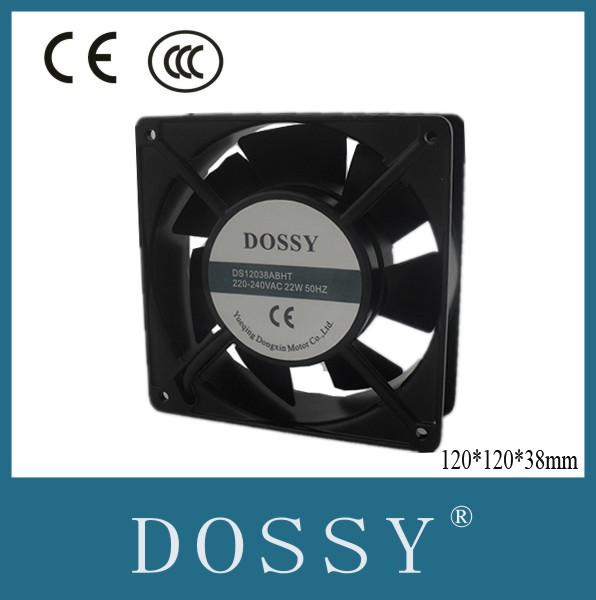

9. 120mm high volume small axial fan

10. Model	Bearing System	Rated Voltage (AC)	Frequency (HZ)	Power (W)	Speed (RPM)	Air Flow (CFM)	Noise DB(A)	Weight (g)
    DS12038ASHL	Slevee	110V/220V/380V	50HZ/60HZ	22	2500	155	48	560
    DS12038ABHL	Ball	110V/220V/380V	50HZ/60HZ	22	2600	160	48	560
    DS12038ASHT	Slevee	110V/220V/380V	50HZ/60HZ	22	2500	155	48	560
    DS12038ABHT	Ball	110V/220V/380V	50HZ/60HZ	22	2600	160	48	560
